A 100% American Business
stay cool, drive comfortable
FREE SHIPPING
OVERNIGHT DELIVERY
EASY TO INSTALL
WARRANTY EXTENDED
Why Choose THE universal underdash
5 vents. Powerful. Effective.
Powerful enough to tackle any deep warm season.
Independent Functioning
Universal underdash can function independently of the engine's operation, which is particularly advantageous in electric and hybrid vehicles, as it allows for air conditioning without engine engagement.
Quiet Operation
This underdash often operate more quietly than other a/c systems, contributing to a more pleasant and noise-free environment inside the vehicle.
Consistent Performance
An underdash offers consistent cooling performance, regardless of the engine's RPM. This means better climate control, especially during idle situations or in stop-and-go traffic.
Flexibility And Compability
Underdash units can be easily adapted to various types of vehicles, including cars, trucks, and vans, offering a versatile solution for air conditioning needs.
Simple to INSTAlL, Powerful in Performance

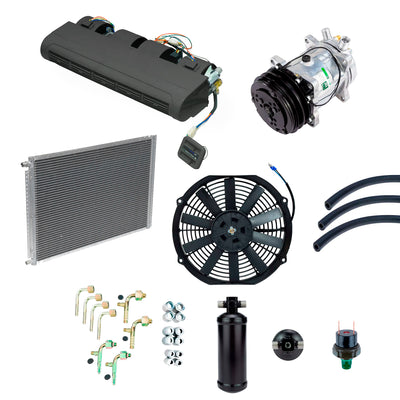

THIS A/C KIT CONTAINS:

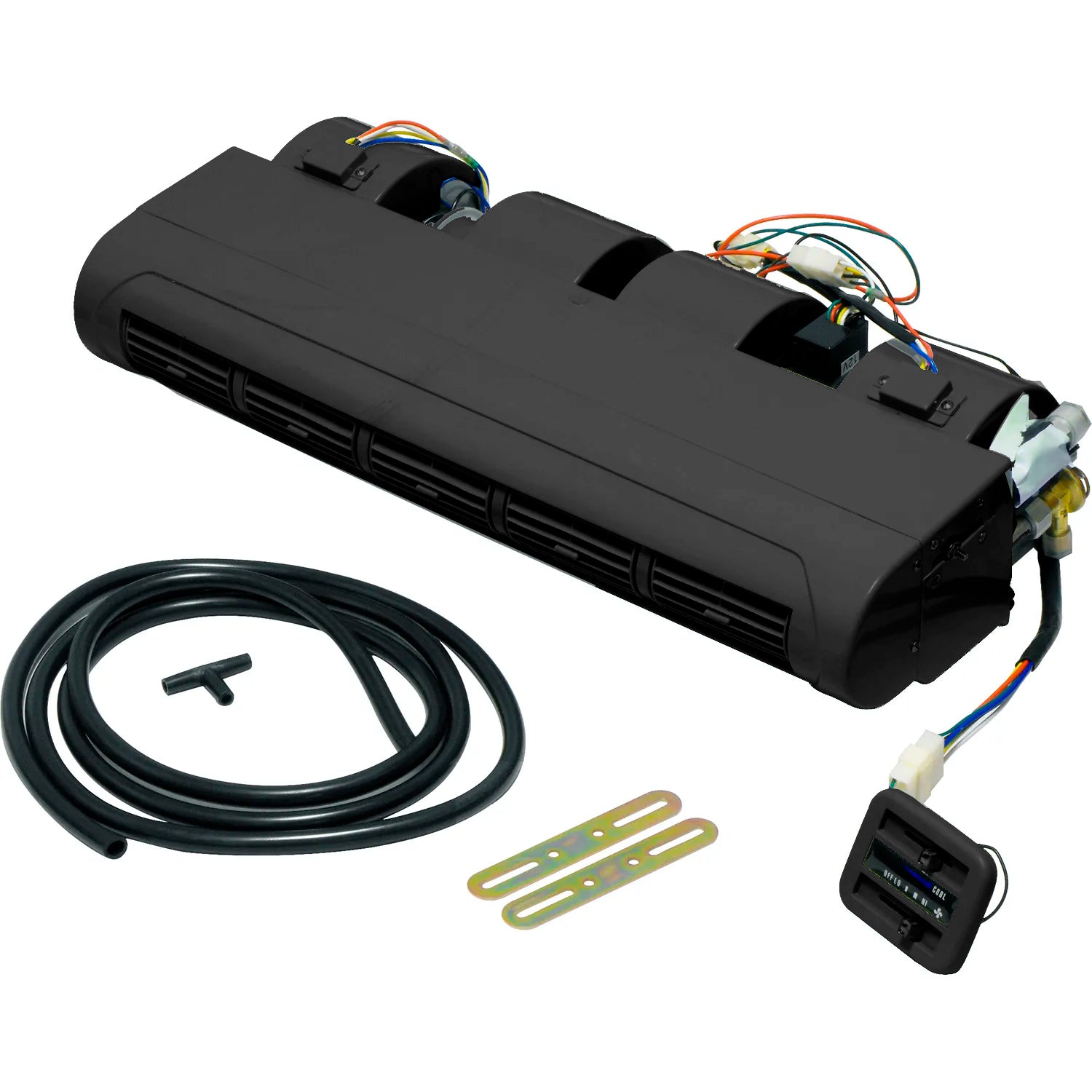

Underdash Unit
Type: Cool Only
Capacity: 22,000 BTU
Capacity: 22,000 BTU
Dimensions: (LxWxH): 36 x 16 x 8 - 18lb
22 pass 4way all Aluminum coil
22 pass 4way all Aluminum coil
Rotative 3-speed blower switch
Compressor
Material: Aluminum
Refrigerant: R134a
Pulley Groove Quantity: 2
Pulley Diameter: 132
Compressor Type: Piston
Universal Fitment: Yes
Oil: PAG46
Compressor Drive Type: Belt Driven
Voltage: 12V
Gauge Line: 39.55
Ports (in): 3/4"x7/8"
Refrigerant: R134a
Pulley Groove Quantity: 2
Pulley Diameter: 132
Compressor Type: Piston
Universal Fitment: Yes
Oil: PAG46
Compressor Drive Type: Belt Driven
Voltage: 12V
Gauge Line: 39.55
Ports (in): 3/4"x7/8"

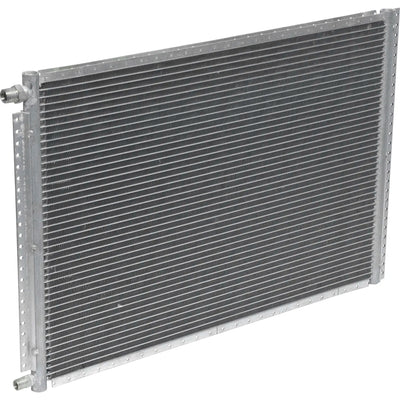

Condenser
PARALLEL FLOW
18 X 26 in (18mm Core Depth)
4 Rails Aluminum
Receiver Drier
2.5 X 7.5 in 3/8MIO X 3/8MIO W/ 1/4 CP

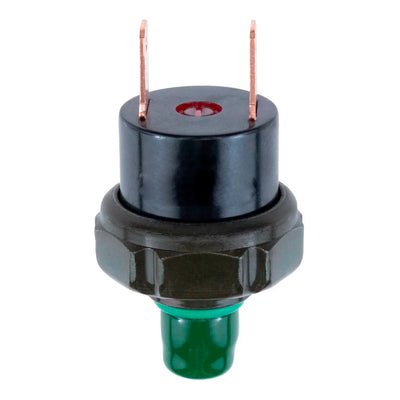

With High/Low Pressure Switch
2x Electric Fan 12"
12" Diameter
12 Volts 80W 6 AMP
Reversible
PAG46 R134A
TSI Supercool
Hose and Fittings
#6 5/16 = 5 FT
#8 13/32 = 5 FT
#10 1/2 = 5 FT
W/ FITTING
Innovate your classic for Maximum Comfort
Built with You in Mind
It’s universal, easy to install, and comes with multiple attachments to suit different classic cars.
beat the heat
Underdash box with high cooling power and ventilation
easy to install
Everything you need is listed and organized
24/7 Support BEFORE AND AFTER
We're here for you anytime, anywhere.
6 MONTH WARRANTY
Backed by a reliable 6-month warranty
testimonial
Real Stories, Real Delighted Customers
RECOMMEND!
“I'm thrilled with my new air conditioning system! Unlike traditional belt-driven compressors, it doesn't steal horsepower, so my vehicle's performance is top-notch. The quality components give me peace of mind, and the free shipping was a nice bonus.
Installation was a snap, though a bit of fabrication was needed. Plus, the warranty and tech support are reassuring. Best of all, I'm enjoying cool air at a fraction of the cost of factory units. Couldn't be happier!”
Wollemberg O.
LOVE IT!
"This is a complete kit for a great price. Even comes with an electric fan if you choose to use it. Install is straight forward if you follow the included diagram. Comes with drier and TXV. The fittings are beadlock so you will need to crimp these lines with an A/C crimp tool.The evaporator unit has 2 dials. Left is Off, low, med, high. The right dial has On and Temp. I'm not sure if this dial does anything to adjust temp as this unit is A/C only.Held vacuum for an hour and was charged with 17 oz r134a.You will need to buy or fabricate a bracket for the compressor."
Threewood.
Mixed Feelings
"I put this in my 63 studebaker station wagon and it blew pretty good. Kept the front seat cold and could feel it a little bit in the back seat. I didn’t expect much for so cheap but I will use it again in my next project"
Sean K.
Experience
"It took me 16 hours to install it. I did some fabrication to get things to fit. The tiny condenser does work. I did not use the supplied electric fan."
RA
Frequently Asked Questions:
Does it fit all types of vehicles?
Designed with a modular and highly adaptable system, our Universal A/C is compatible with virtually any classic car model. Backed by over 6 years of expertise in automotive climate solutions and trusted by professional restoration shops worldwide, this system has already been successfully installed in timeless icons like the Campervans, Regular Vans, Vintage Trucks and many others.
Built to meet international retrofit standards, it integrates seamlessly into your classic’s original layout, maintaining the integrity of the design while bringing in the performance and comfort of modern technology.
What kind of refrigerant is used in this system?
The refrigerant gas used is R134a, and the quantity can vary according to the installation.
How much refrigerant is filled in this kit?
Depends on the A/C system size. it is important to check the pressures in the system after installation.
What kind of oil used for installation?
The oil that should be used is PAG46.
How much pressure is indicated for A/C system?
For High pressure line is 180~200 psi for Low pressure line is 30~40 psi.
